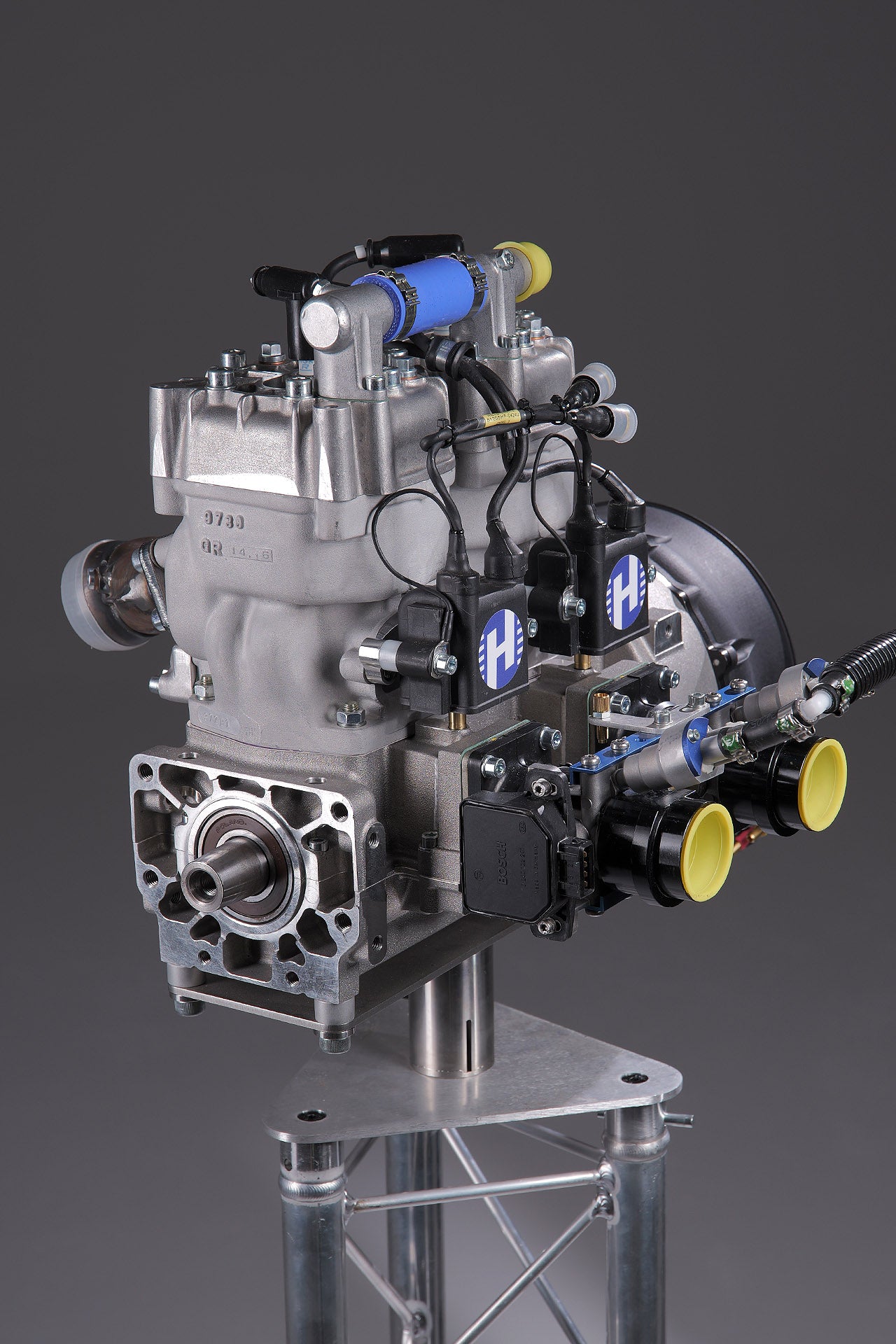

Hirth 35 Series Engine
Hirth 35 Series Engine
Couldn't load pickup availability
The price shown is an estimated price based on engine configuration and prevailing import costs. Final pricing will be provided at the time of order and may change based on options selected, manufacturer pricing, international shipping, tariffs, customs fees, exchange rates, and other import-related costs beyond the control of AffordaplaneStore.com.
The 35 Series liquid cooled two-stroke engines offer the maximum power-to-weight ratios available in the 70-horsepower market.
Offers an ideal choice for use in light and ultralight aviation, hovercraft, gyro and helicopters and all applications where weight could be an issue.
This engine series offer a time between overhauls of 1000 hours at 75% power and is fit to take on any challenge in the future.
OPTIONS
- Dual ignition
- Gear box G 50 (1:2,16/1:2,29/1:2,59/1:3,16/1:3,65)
- Electric starter
- Separate lubrication
TECHNICAL SPECIFICATION
TYPE |
|||
| Cylinder | Two-Stroke | ||
| Starting Device | Electrical starter | ||
| Running Direction | CW | ||
| Cooling | Water cooled | ||
| Ignition | Single | ||
| Exhaust | Normal | ||
FUEL |
|||
| Fuel | Petrol | ||
MEASUREMENTS |
mm | in |
|
| Stroke | 69,00 | 2,72 | |
| Bore | 76,00 | 2,99 | |
| Length | 456,00 | 17,95 | |
| Width | 396,00 | 15,59 | |
| Height | 411,00 | 16,18 | |
WEIGHT |
kg | lbs | |
| Weight without exhaust | 33,50 | 73,85 | |
| Weight Exhaust | 2,50 | 5,51 | |
PERFORMANCE |
kW | HP | Nm |
| Power measured (full throttle) | 51,67 | 70,27 | 73,30 |
| Power measured (best point) | 51,67 | 70,27 | 73,30 |
| Specific fuel consumption @6500rpm | (g/kWh) | 436,43 | |
| Specific fuel consumption @best point (70-80% load, 1/2 rated speed) |
(g/kWh) | 436,43 | |
| Speed | RPM | 6700 | |
TECHNICAL DRAWINGS
