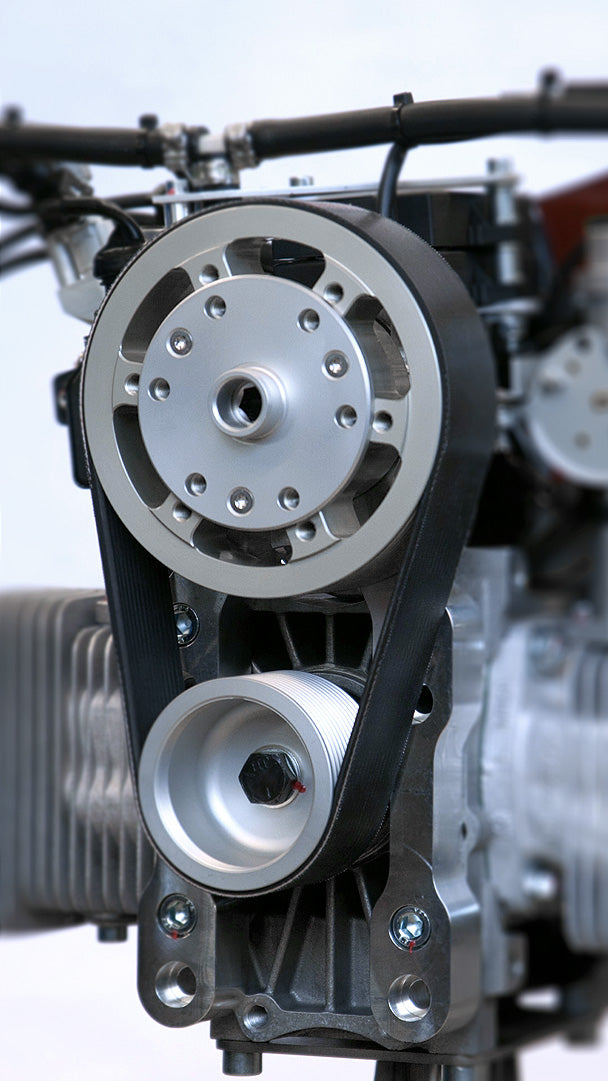

Hirth 2302 Series Engine Dual Ignition EFI
Hirth 2302 Series Engine Dual Ignition EFI
Couldn't load pickup availability
Hirth 2302
Power that lifts.
Performance that
lasts.
High-Performance Two-Stroke Air-Cooled Engine for Ultralight Aviation.
The 2302 engine from the 23 Series is a high-efficiency, air-cooled two-stroke engine designed specifically for ultralight aviation applications. Perfectly suited for aircraft and aerial devices weighing up to 120 kg, it delivers an impressive 50 horsepower, setting new benchmarks in the power-to-weight ratio category.
Built for performance and reliability, the 2302 engine stands out in the 50 HP class with a time between overhauls (TBO) of 1,000 hours, making it a future-ready solution for demanding flight environments.
Choose the 2302 from the 23 Series – an ultralight aircraft engine that combines power, durability, and lightweight design in one compact and proven package.
The price listed on our website is our best estimate based on current information from Hirth. Because these engines are imported from Europe, the final cost can fluctuate due to exchange rates, international shipping, customs, and tariffs.
While the listed price is generally sufficient to place the order, Hirth requires payment upfront before processing, so we cannot determine the exact final landed cost in advance. As these additional import-related charges are outside our control and remain the customer's responsibility the website price should be considered a close estimate rather than a guaranteed final total. Shipping takes approximately 60 - 90 days.
OPTIONS
- Dual ignition
- Fuel injection
- Polyflex beltreduction G23
- Electric starter
- Exhaust system (acc. to version)
- Air filter (2 pcs.)
TECHNICAL SPECIFICATION
TYPE |
|||
| Cylinder | Two-Stroke | ||
| Starting Device | Electrical starter | ||
| Running Direction | CW | ||
| Cooling | Air Cooled | ||
| Ignition | Dual | ||
| Exhaust | Normal | ||
FUEL |
|||
| Fuel | Petrol | ||
MEASUREMENTS |
mm | in |
|
| Stroke | 64,00 | 2,52 | |
| Bore | 72,00 | 2,83 | |
| Length | 446,00 | 17,56 | |
| Width | 473,00 | 18,62 | |
| Height | 450,00 | 17,72 | |
WEIGHT |
kg | lbs | |
| Weight without exhaust | 30,20 | 66,58 | |
| Weight Exhaust | 3,80 | 8,38 | |
PERFORMANCE |
kW | HP | Nm |
| Power measured (full throttle) | 32,00 | 43,52 | 46,00 |
| Power measured (best point) | 36,00 | 48,96 | 58,00 |
| Specific fuel consumption @6500rpm | (g/kWh) | 660,00 | |
| Specific fuel consumption @best point (70-80% load, 1/2 rated speed) |
(g/kWh) | 550,00 | |
| Speed | RPM | 6500 | |
TECHNICAL DRAWINGS
