CHERRY RIVETS CCP-44

  • Sale
  • Regular price $0.32
Shipping calculated at checkout.

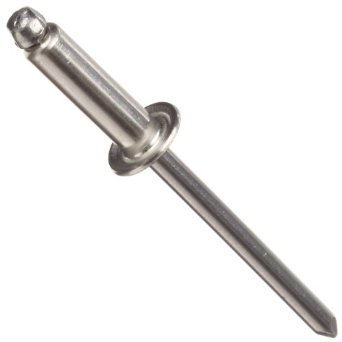

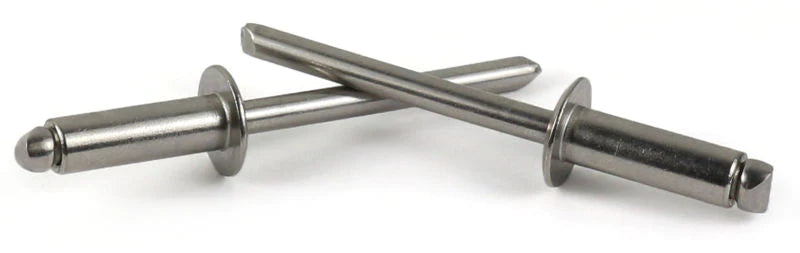

Stainless steel blind rivet 1/8” diam. X 1/4” length

Plans call for 40

CHERRY N RIVET IDENTIFICATION CODE
First letter is rivet material:
A=5052 Aluminum B=5056 Aluminum C=Stainless M=Monel S= Steel U=Copper

Second letter is mandrel material:
A = 7178 Aluminum, S = Steel, C = Stainless

Third letter is head style:
P = Protruding L = Large C = Flush

First number is rivet diameter in 32nds of an inch:
For example,--4 is 4/32nds or 1/8" diameter

Second number is rivet maximum grip length in 16ths of an inch:
For example,--6 is 6/16ths or 3/8" grip length

MINIMUM RIVET SHEAR AND
TENSILE STRENGTH (Ibs.)

RIVET
DIA.

BS SERIES
ALUM RIVET / STEEL MAND.
GRADE 19
MS SERIES
MONEL RIVET / STEEL MAND.
GRADE 40
CC SERIES
STAINLESS RIVET / STAINLESS MAND.
GRADE 51
Shear
Tens
Shear
Tens
Shear
Tens
3/32
125
175
200
300
230
280
1/8
200
325
350
525
450
600
5/32
325
450
600
900
750
1000
3/16
430
650
750
1100
1000
1300
1/4
750
1050
1450
2150
1700
2250
