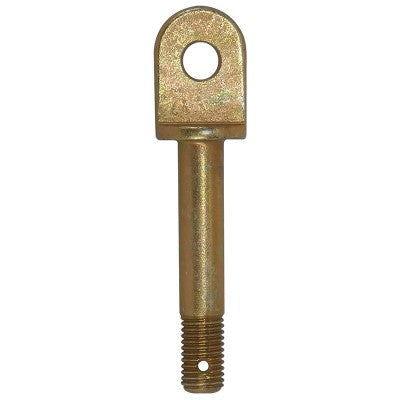

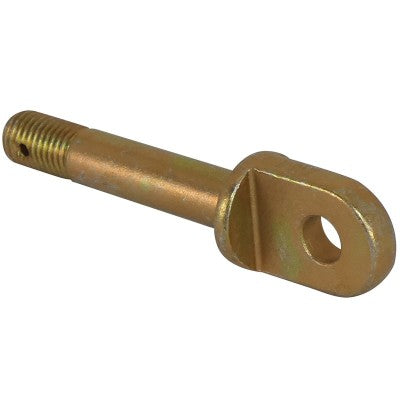

AN42B-14 EYE BOLTS (10-32 THREAD | 3/16 SHANK)

AN42B-14 EYE BOLTS (10-32 THREAD | 3/16 SHANK)

Regular price $12.75 USD
Regular price Sale price $12.75 USD
Sale Sold out
Shipping calculated at checkout.
Nominal
Length
Grip
Length
Part Number
1-1/2 1-1/8 AN42B-14

 Shank 3/16" Hole 3/16" Thread 10-32

Special purpose bolts to be used where external tension loads are to be applied. The eye is designed for attachment of such devices as a turnbuckle fork, a clevis or a cable shackle. Manufactured and plated in same manner as AN3 - AN8 bolts . Minimum tensile strength 125, 000 PSI .

May be used to make the hinges on the affordaplane ailerons side, use with AN364-1032 Nylock Nuts, MS20392-2C11 clevis pinAN960-10 washer and cotter pin. (8 needed)
