| Nominal Length |
Grip Length |
Part Number |
|---|---|---|
| 1-3/8 | 1 | AN42B-13A |
Shank 3/16" Hole 3/16" Thread 10-32.

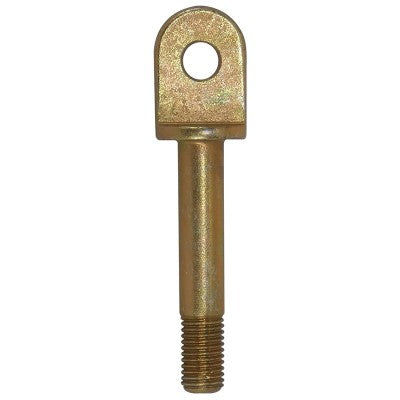

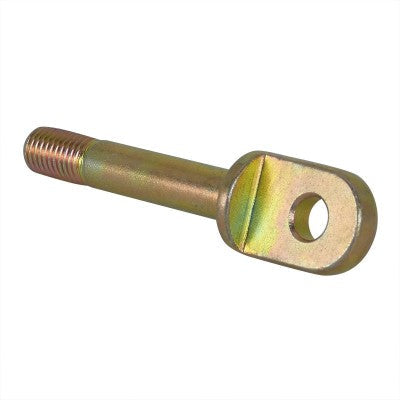

Special purpose bolts to be used where external tension loads are to be applied. The eye is designed for attachment of such devices as a turnbuckle fork, a clevis or a cable shackle. Manufactured and plated in same manner as AN3 - AN8 bolts . Minimum tensile strength 125, 000 PSI .
May be used to make the hinges on the affordaplane elevator and rudder surfaces, use with AN364-1032 Nylock Nuts, MS20392-2C11 clevis pin, AN960-10 washer and cotter pin. (12 needed)
