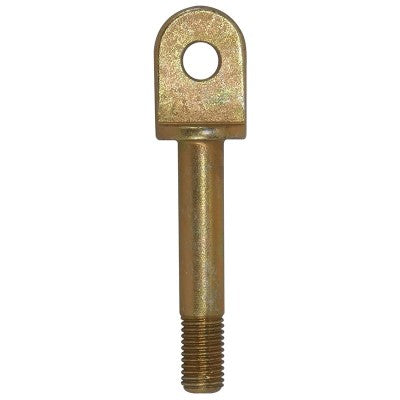

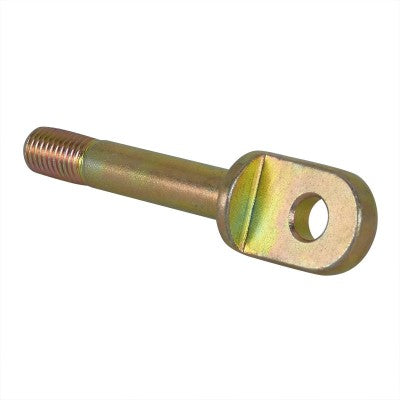

AN42B-17A EYE BOLTS (10-32 THREAD | 3/16 SHANK)
AN42B-17A EYE BOLTS (10-32 THREAD | 3/16 SHANK)
Regular price
$19.50 USD
Regular price
Sale price
$19.50 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Nominal Length |
Grip Length |
Part Number |
---|---|---|
1-7/8 | 1-1/2 | AN42B-17A |
Shank 3/16" Hole 3/16" Thread 10-32.
Special purpose bolts to be used where external tension loads are to be applied. The eye is designed for attachment of such devices as a turnbuckle fork, a clevis or a cable shackle. Manufactured and plated in same manner as AN3 - AN8 bolts . Minimum tensile strength 125, 000 PSI .
May be used to make the hinges on the affordaplane main wing trailing edge aileron attach point, use with AN364-1032 Nylock Nuts, MS20392-2C11 clevis pin, AN960-10 washer and cotter pin. (8 needed)
